SHACMAN TRUCK PARTS CATALOGS FOR CABIN STEP

Details

Keywords: shacman parts catalogs, shacman parts catalogs, shacman cabin, shacman parts,

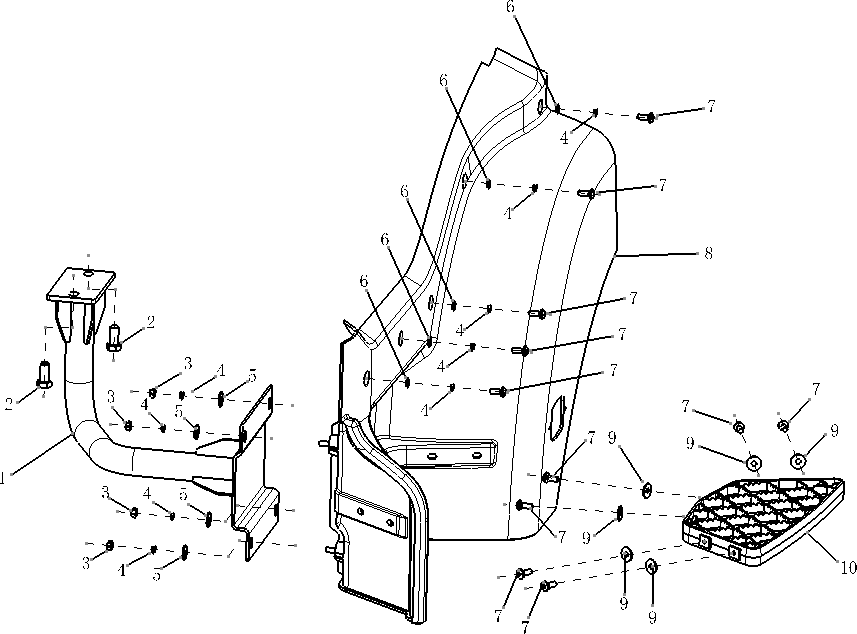

Bracket Assembly Left -Shacman Truck Cabin Parts Catalogs
序号NO	件号Part.No	名称Designation	Name	数量Quantity
序号NO	件号Part.No	名称Designation	Name	数量Quantity
1	DZ15221242330	左上踏板支架总成	bracket assembly left	1
2	Q151B1430TF2	六角头螺栓-细牙	Screw	2
3	Q340B08	1 型六角螺母	Hex bolt	4
4	Q40308	弹簧垫圈	Washer	9
5	Q40208	大垫圈	Washer	10
6	Q40008	小垫圈	Washer	5
7	Q2140820	十字槽盘头螺钉	Screw	11
8	DZ15221242451	左上门台阶	Left door step	1
9	DZ15221242462	上台阶	Ladder	1

shacman parts.png

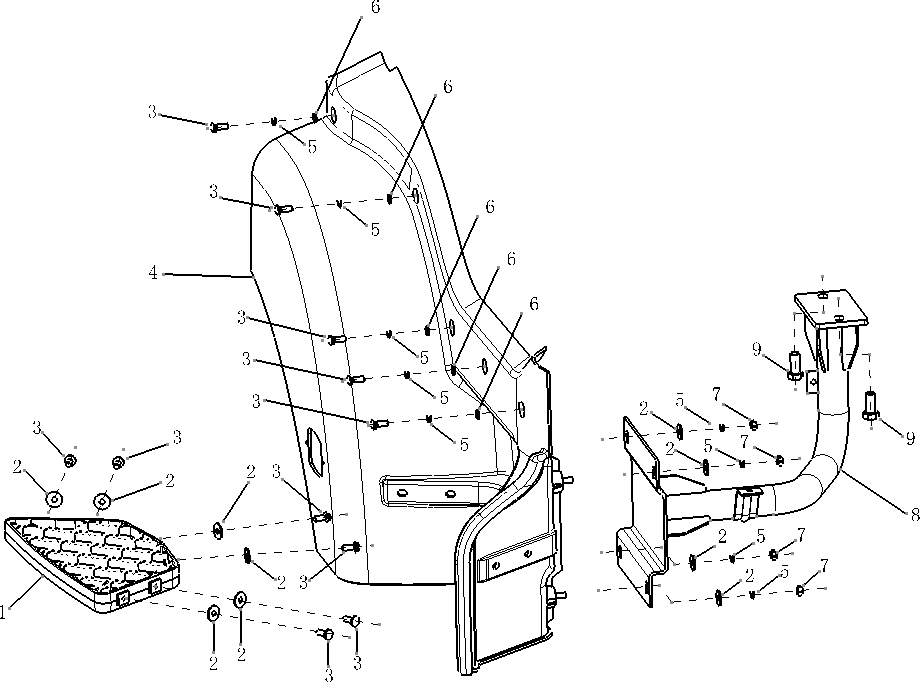

Bracket Assembly Right -Shacman Truck Cabin Parts Catalogs
序号	件号	名称		数量
NO	Part.No	Designation	Name	Quantity
1	DZ15221242462	上台阶	Ladder	1
2	Q40208	大垫圈	Washer	10
3	Q2140820	十字槽盘头螺钉	Screw	11
4	DZ15221242452	右上门台阶	Right door step	1
5	Q40308	弹簧垫圈	Washer	9
6	Q40008	小垫圈	Washer	5
7	Q340B08	1 型六角螺母	Hex bolt	4
8	DZ15221242340	右上踏板支架总成	bracket assembly right	1
9	Q151B1430TF2	六角头螺栓-细牙	Screw
