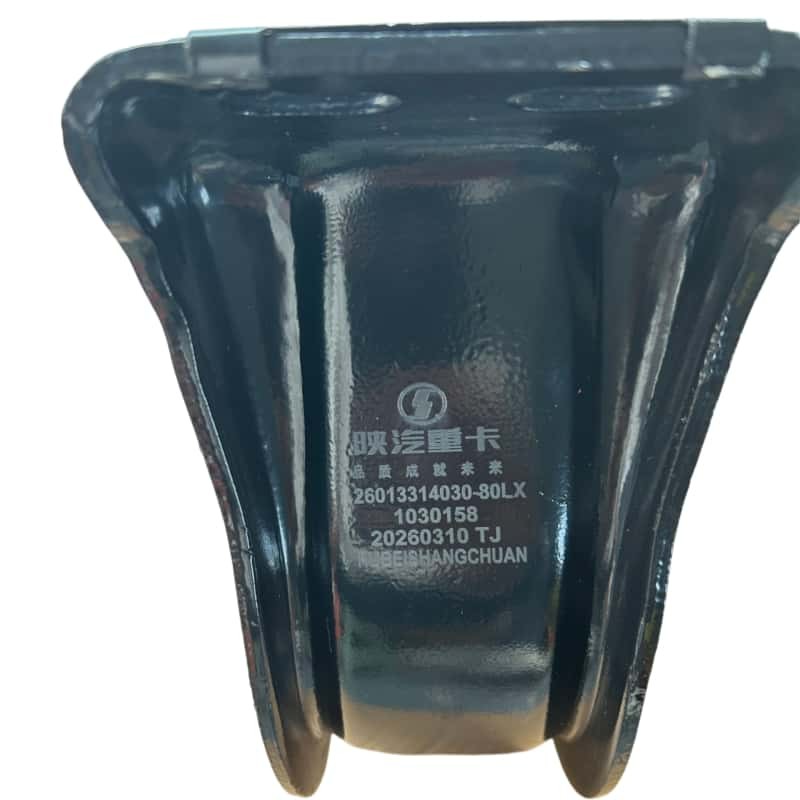

Drive Shaft Hanger Assembly 26013314030-80L for SHACMAN Delong

OEM Quality · Perfect Fit · Eliminate Abnormal Noise

[Product Name] Drive Shaft Center Support Hanger Assembly (Intermediate Hanger) [Part Number] 26013314030-80L [Bearing Size] Φ80 (80mm bore) [Product Weight] Approx. 4.6 KG [Applicable Models] SHACMAN Delong F3000 / X3000 / M3000 series (interchangeable with Steyr STR platform; also fits selected SINOTRUK HOWO / SITRAK models)

[Product Description]

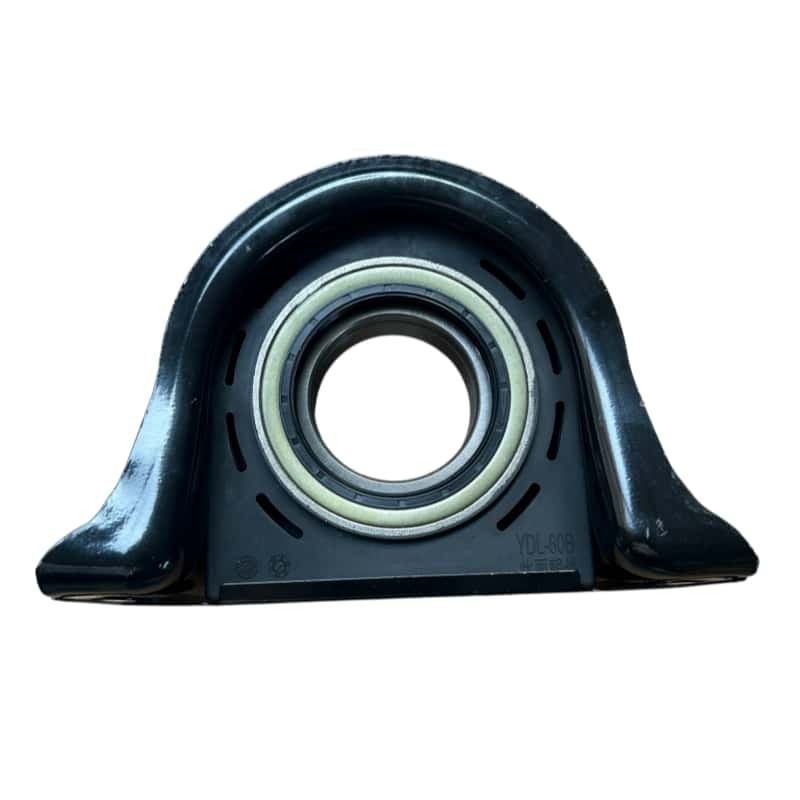

This product is a drive shaft center support hanger assembly, mounted on the frame crossmember to support the intermediate drive shaft of long-wheelbase vehicles. It consists of a rubber cushion for shock absorption and a center support bearing for rotational load. Manufactured in accordance with OEM technical specifications, the rubber components are made of oil-resistant, anti-aging compound, and the bearing is dynamically balanced. It effectively eliminates the "humming" noise and body resonance caused by drive shaft vibration during driving, ensuring smooth and reliable power transmission.

[Specification Series Description]

26013314030 is the base series number; the suffix indicates the bore diameter of the support bearing. Different sizes are NOT interchangeable. Please select according to your actual vehicle:

						Part Number Suffix


						Bearing Size


						Remarks

-60

						Φ60


						Grease nipple version available for selected specs


-65

						Φ65


						Common repair part


						-70 / -70B / -70LX


						Φ70


						LX = new state/updated design


-75

						Φ75


—

						-80 / -80L / -80LX


						Φ80


						This product (L/LX = new state)


[Common Failure Symptoms & Replacement Guide]

It is recommended to inspect and replace the hanger assembly when the following symptoms occur:

A "humming" noise that increases with vehicle speed during driving;
Cracked, detached, or aged rubber cushion of the hanger;
Excessive looseness or play at the intermediate drive shaft support point.

[Installation Tips] When replacing, it is recommended to inspect the universal joint cross shaft and drive shaft dynamic balance at the same time. Fill the bearing cavity with an appropriate amount of grease before assembly (for versions with grease nipple, regular re-lubrication is required).

[Notes]

Please verify the suffix of your original hanger part number (Φ60/65/70/75/80) before ordering — different bores are NOT interchangeable;
If you are unsure, please provide the 17-digit VIN, and our customer service will verify the correct part number for you free of charge;
Returns and exchanges are supported (item must be in resalable condition); return shipping costs due to incorrect part number verification by the buyer are the buyer's responsibility.
